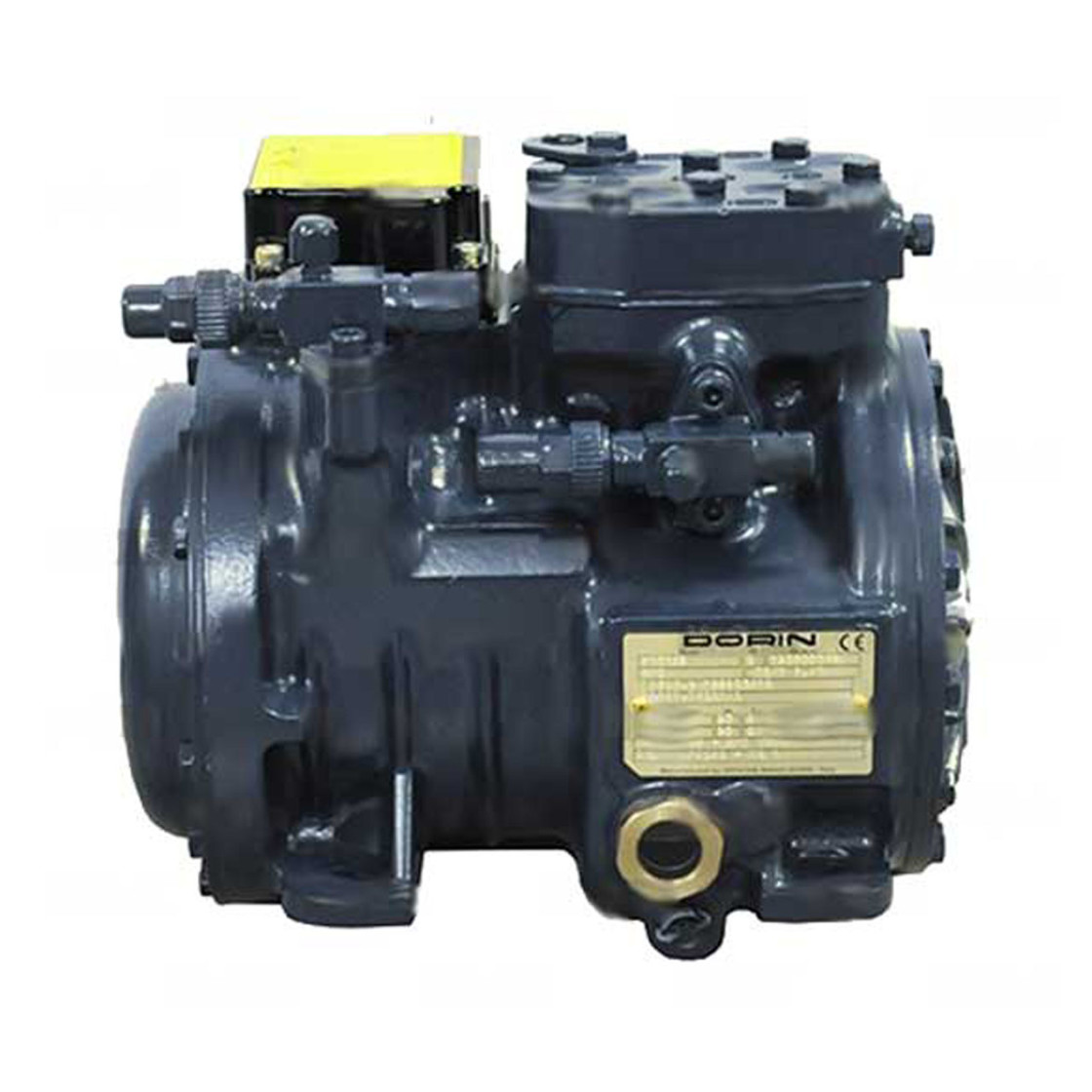

The Dorin H101CC compressor is designed for commercial and industrial refrigeration applications. Here’s a breakdown of its key features:

Model: H101CC

Type: Semi-hermetic piston compressor

Number of Cylinders: 2

Displacement: 5.37 m³/h at 50 Hz

Refrigerant Type: R404A, R407C, R507, R134a

Power Supply: 380–420 V / 50 Hz

Power: 1 HP

Oil Type: POE 32

Oil Charge: 1.0 L

Dimensions: 305 x 230 x 285 mm

Net Weight: 37 kg

Connections:

• Suction: 16 mm

• Discharge: 12 mm

Additional Features:

• Equipped with a crankcase heater

• Service valves for suction and discharge

• Factory-filled with oil

• Electronic protection module (REL)

Applications: Ideal for commercial and industrial refrigeration systems, such as cold rooms, refrigerated display cases, and air handling units.
