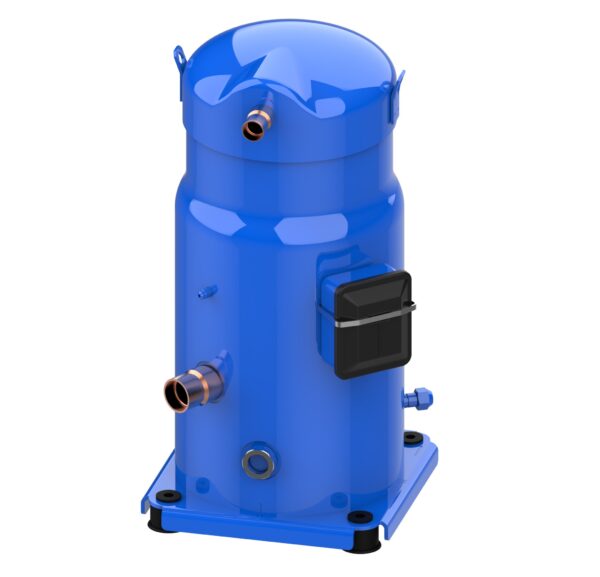

The Danfoss SM110 is a high-efficiency scroll compressor designed for air conditioning applications. Here’s a breakdown of its key features:​

Type:
Scroll compressor​

Refrigerant:
Compatible with R22 refrigerant.​

Power Supply:
Operates on three-phase power, with voltage options including 380–415V/50Hz or 460V/60Hz.​

Cooling Capacity:
Nominal cooling capacity is approximately 110,000 BTU/h (32.2 kW) at 60Hz.​

Oil Type:
Mineral oil (160P), with an oil charge of 3.25 liters.​

Swept Volume:
Approximately 150 cm³.​

Physical Dimensions:

• Diameter: 266 mm

• Total height: 591 mm

• Suction connection size: 1 3/8 inch

• Discharge connection size: 7/8 inch​

Operating Limits:

• Maximum high-side pressure: 33.0 bar

• Maximum low-side pressure: 25.0 bar

• Maximum operating current: 15.7 A

• Maximum number of starts per hour: 12​

Applications:
Primarily used in air conditioning systems, such as:​

• Commercial air conditioning

• Industrial air conditioning

• Process cooling​

The SM series is designed to support modern refrigerants in response to environmental regulations. When choosing the SM110, consider system compatibility, refrigerant availability, and long-term regulatory compliance.
